Industrial High Temperature Furnace

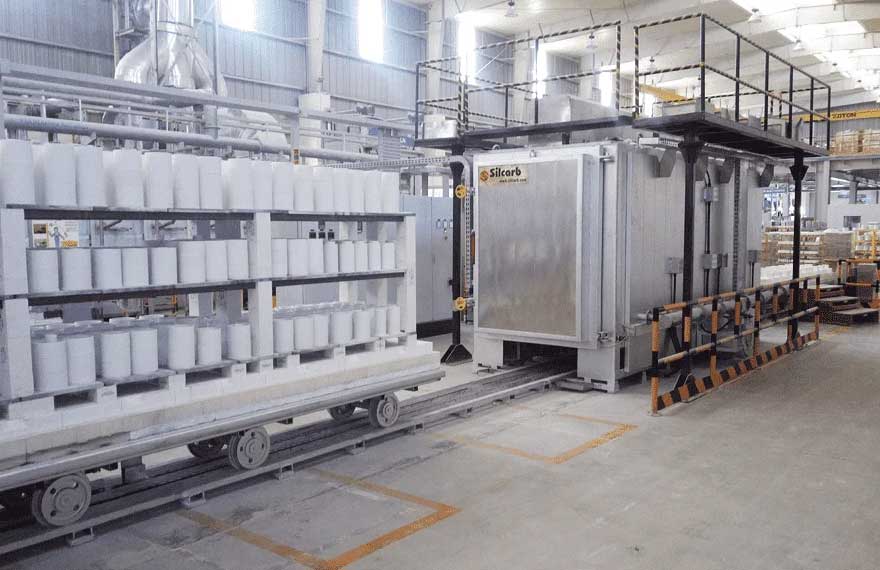

High Temperature furnaces of 1550° C Two car kiln installation for ceramic glazing, with controlled cooling.
Silcarb has a number of these high-temperature furnace in operation around the world. Silcarb uses its own high-density reaction bonded Silicon Carbide Heating Elements (which is manufactured in its plant in Bangalore) for these High-Temperature Furnaces.
These can be used for producing technical ceramics and for sintering operations at a working temperature of about 1550° C. Silcarb manufactures its high-temperature furnaces with a robust design that can hold heavy charges. The furnace is equipped with high-quality insulation fiber blocks. The furnace has a multilayered lightweight refractory brick on the heating chamber side. The SiC Heating Rods are vertically installed in the furnace in order to provide uniform heating. The SiC rods are controlled by a thyristor controller which counteracts the aging process of the heating elements. Some of the important characteristics of the high-temperature furnace are:
- The maximum operating temperature is 1700° C.
- Heating is provided from both the sides through vertically mounted SiC rods.
- The SiC rods are controlled by a thyristor controller which counteracts the aging process of the heating elements.
- The swing door is provided with a hinge.
- Multi-layered insulation for better performance.
- For better ventilation, Dual shell housing is provided.
- Lined with lightweight refractory bricks.
- Motor-Driven exhaust provided on the furnace roof along with exhaust gas piping.
- These High-Temperature Furnaces are completely automated and run on SCADA systems with PLC’s to control the entire system along with documentation and monitoring.
- High-temperature accuracies with long heater life and refractory life are a feature of these Furnaces.
- Advanced safety concepts.
For further information on Furnaces…
