MOSIL (MoSi2) Straight (Terminal) Elements

Silcarb Manufactures  MoSi2 heating element as straight and bent elements in a wide range of sizes and shapes.

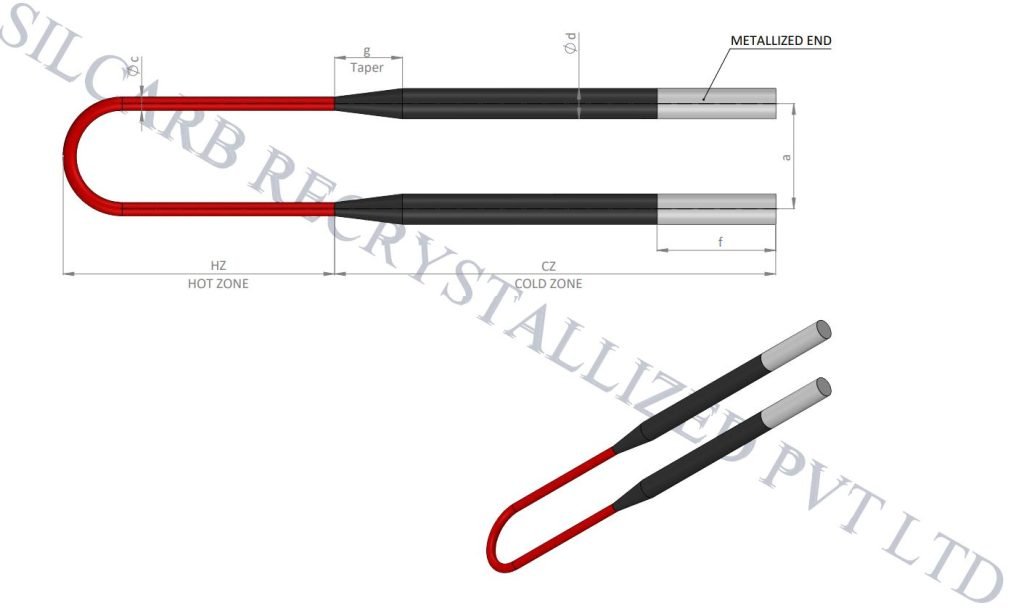

Two-shank MoSi2 heating element with straight terminals are defined by:

• Heating zone diameter, mm
• Terminal diameter, mm
• Terminal length, Lu, mm
• Heating zone length, Le, mm
• Center distance between shanks, A, mm

The most commonly used design is a two-shank U- shaped element (MOSIL  (MoSi2)Straight Elements). The heating zone is welded to terminals which normally has a diameter double than that of the heating zone. MOSIL (MoSi2) Straight heating elements are manufactured to industry-established resistance values. The same spacing, power ratings, and voltages, used with other molybdenum disilicide elements can be used. The maximum length of the heating zone depends on the element temperature. They can be widely used in such applications as sintering and heat treatment on electronic ceramics, structural ceramics, magnetic materials, flameproof materials, glass, metallurgy, etc. All heaters that silcarb manufacture are interchangeable with kanthal super 1900, i2r, i-squaredr and super kanthal 1800.

Two-Shank  MOSIL (MoSi2)  1700  6/12

• Max.Element temperature 1700^o C (3090^o F)
• Heating zone ø mm 6
• Terminal ø mm     12

(Power – W,  Resistance – Ω,  Volt –V)

Heating Zone L_e ———->

Two-Shank  MOSIL (MoSi2) 1700  9/18

• Max.Element temperature 1700^o C (3090^o F)
• Heating zone ø mm 9
• Terminal ø mm     18
•  Shank distance mm 60

(Power – W,  Resistance – Ω,  Volt –V)

Two-Shank  MOSIL (MoSi2)  1700  12/24

• Max.Element temperature 1700^o C (3090^o F)
• Heating zone ø mm 12
•  Terminal ø mm     24
• Shank distance mm 80

(Power – W,   Resistance – Ω,  Volt –V)

Two-Shank  MOSIL (MoSi2) 1800  3/6

• Max.Element temperature 1800^o C (3270^o F)
• Heating zone ø mm 3
• Shank distance mm 25

(Power – W,  Resistance – Ω,  Volt –V)

Two-Shank  MOSIL  (MoSi2) 1800  4/9

• Max.Element temperature 1800^o C (3270^o F)
• Heating zone ø mm 4
•  Terminal ø mm     9
• Shank distance mm  25

(Power – W,  Resistance – Ω,  Volt –V)

Two-Shank  MOSIL (MoSi2) 1800  6/12

• Max.Element temperature 1800^o C (3270^o F)
• Heating zone ø mm 6
• Terminal ø mm    12
• Shank distance mm  50

(Power – W,  Resistance – Ω,  Volt –V))

Two-Shank  MOSIL (MoSi2)  1800  9/18

• Max.Element temperature 1800^o C (3270^o F)
• Heating zone ø mm 9
•  Terminal ø mm    18
• Shank distance mm  60

(Power – W,  Resistance – Ω,  Volt –V)

Two-Shank  MOSIL (MoSi2)  1800  12/24

• Max.Element temperature 1800^o C (3270^o F)
• Heating zone ø mm 12
• Terminal ø mm    24
•  Shank distance mm  80

(Power – W,  Resistance – Ω,  Volt –V)

Download the MOSIL Range of Molybdenum Di-Silicide Heater Brochure
