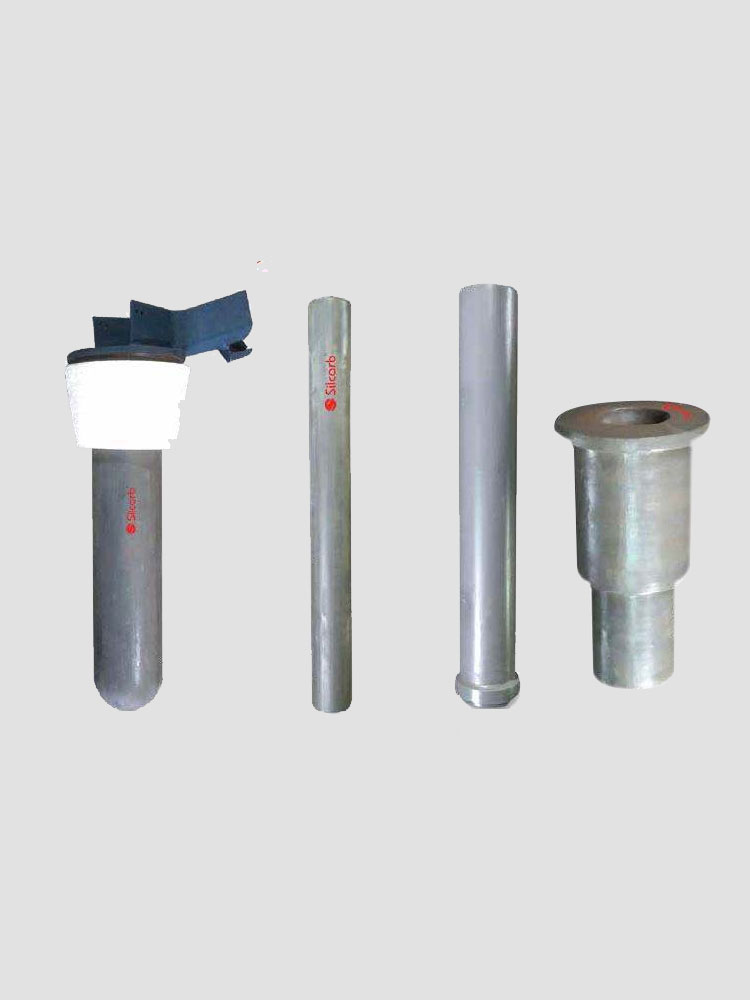

Nitride Bonded Silicon Carbide and Silicon Nitride Based Ceramics for Aluminium Contact Applications.
Silcarb manufactures high-end Silicon Nitride products for foundry applications.
We buy high-quality Silicon Nitride powders form the best possible sources. Silicon nitride is almost as light as silicon carbide (SiC). It has high wear resistance along with high temperature and high corrosion resistance at low specific weight. The presence of micro-structure gives them exceptional thermal shock resistance and their high fracture toughness makes them resistant to impact and shocks. This high strength is a result of the high energy and covalent bonding structure of the material which maintains its strength even at high temperatures. Silicon nitride exhibits excellent tribological properties and is also used in wear applications. This makes Silicon nitride suitable for high temperature applications.

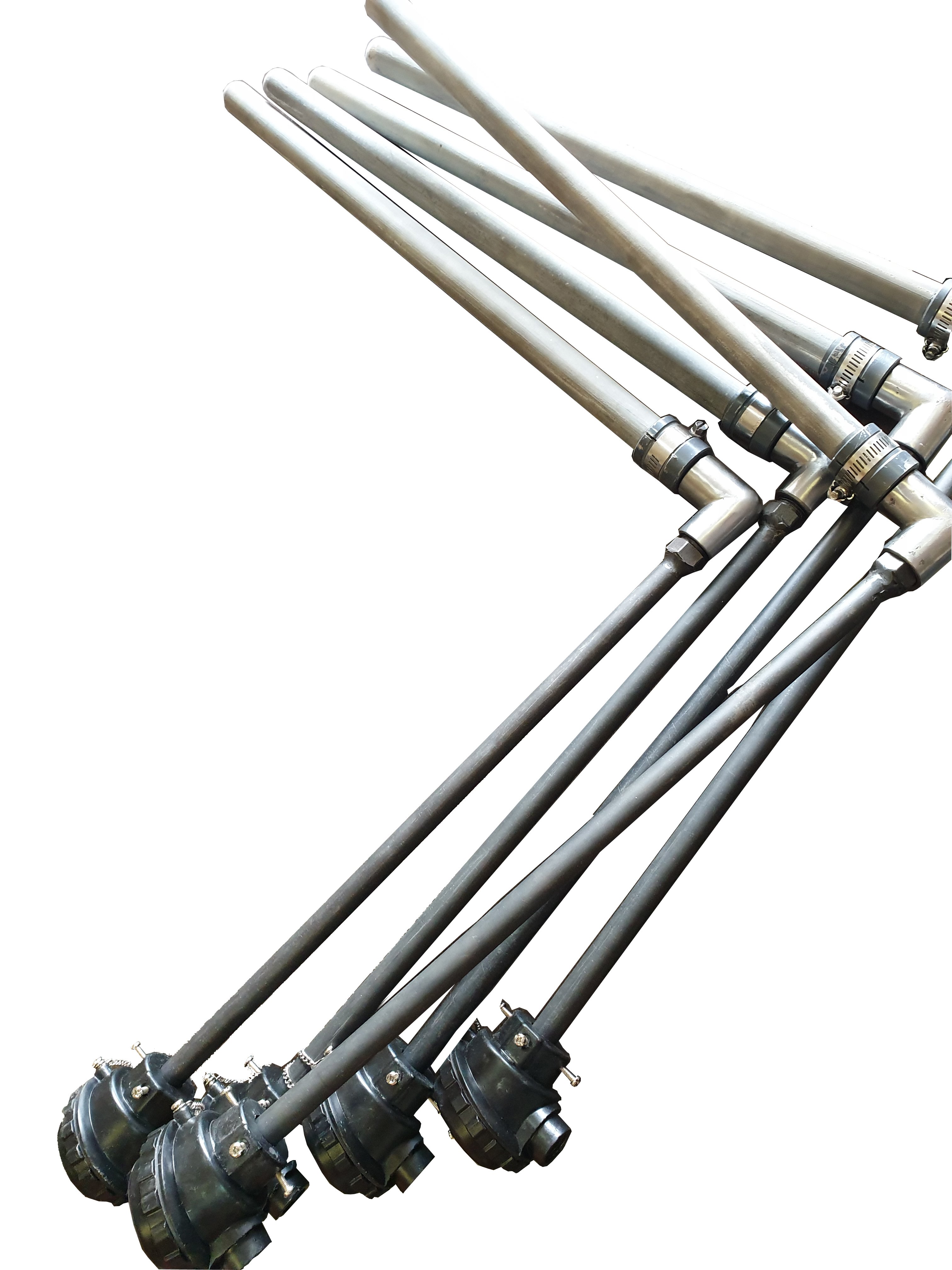

The silicon nitride powder is mixed with oxidic sinter additives. They are then processed with normal ceramic shaping methods and are sintered at 1800 to 1900°C. All of this happens in a nitrogen atmosphere and at pressures of up to 100 bar. We ourselves have an in-house spray dryer/ freeze drier where we prepare our powders with binders etc. varying component shapes can be made using normal ceramic shaping method. All Silicon Nitride products that silcarb manufactures are isostatically pressed. These are then dried and fired in our state-of-the-art sintering furnaces to temperatures of 1800°C. We manufacture Thermocouple Tubes, Immersion Heater Tubes for Molten Aluminium as well as Molten Zinc and Molten Copper, Low-Pressure Stalk Tubes (LPDC Stalk tubes), Riser tubes, Dosing tubes degassing rotors, Molten metal transfer cups, launders etc.
In order to achieve very tight tolerances, fully sintered material must be machined with diamond tools. This processing of the sintered components requires a very precise diamond coated tool to obtain the desired shape.

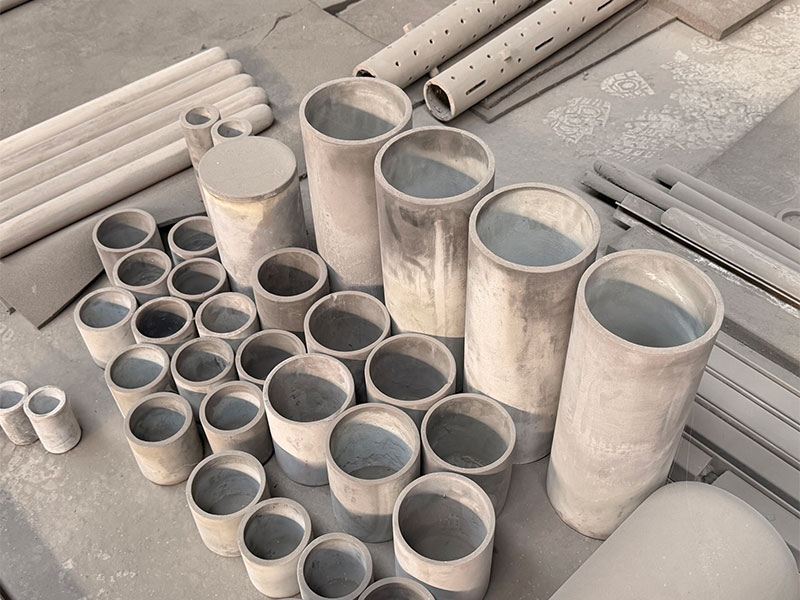

The silicon nitride ceramics are available in different product forms and can be customized to different standard sizes and geometries to suit a variety of application. Contact us for any further details.
Features of Nitride Bonded Silcion Carbide and Silicon Nitride Based Ceramics
- High Density
- Non Wetting
- High Thermal Shock Resistance
- Complex Shapes
- Economical
- Extra Long Life
For further information on Nitride Bonded Ceramics……
